We Have The Key to Your Perfect Weld Purge
Product News Tuesday, December 13, 2016: Huntingdon Fusion Techniques Limited
A unique Weld Purge Monitor® has been designed and developed that reads from atmospheric level of oxygen (20.94%), down to one part per million (0.0001%), breaking all technological boundaries in one instrument.
Huntingdon Fusion Techniques Limited HFT® continues to grow its innovation of Weld Purge Monitors® / oxygen analysers that were first invented and manufactured by the company over 40 years ago.
CEO for HFT®, Georgia Gascoyne said: “The PurgEye® 600 incorporates the features and benefits of all the other Weld Purge Monitor® designs in the HFT® Family Range, but for the first time, this one instrument has a full range of measurement reading from atmospheric concentration (20.94%), down to 1 ppm, accurate to 10 ppm. Readings are indicated either as parts per million or in percentage.”

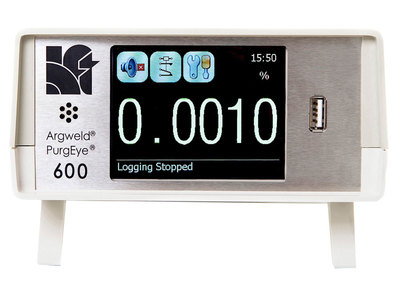

Using ground breaking technology, the PurgEye® 600 has a life time sensor that won’t need replacing or recalibrating. This high level, advanced instrument has been designed with a large, full colour touch screen (3.2"/ 81 mm) and on-screen graph displaying the oxygen levels during the welding process.
USB data logging capability allows the operator the ease of data transfer without the need for a computer connection. These stable, accurate results can be logged for each weld, using the PurgeLog™ Software.
Not only has HFT® been able to achieve these features, they have also included an internal sampling pump with gas filtration, which means there is no requirement for an external hand pump.
Quick fit / disconnect, leak tight fittings are manufactured as standard on the PurgEye® 600. In addition, control alarms will activate in the event of rising or falling oxygen level, which can be pre-set by the user.
The PurgEye® 600 Weld Purge Monitor® is ideal for industries such as aerospace, pharmaceutical, semi-conductor, cryogenics, specialist gas manufacture and food and beverage, as well as many others where oxide free, zero colour welds have to be achieved and where traceability is a major advantage for the requirements of high-end Quality Control systems.
Huntingdon Fusion Techniques HFT® have a Worldwide Exclusive Distributor network, which can be found at www.huntingdonfusion.com.
PurgEye® 600 YouTube video: https://youtu.be/pLJ0Q3KQYCM.
