Dymot Conveyor Belt Pulling Winches.

Dymot Conveyor Belt Pulling Winches.

Product News Monday, March 06, 2017: Dymot Engineering Co. (Pty) Ltd.



Dymot offers Belt Puling Winches for this exact need.

Dymot‘s Belt pulling Winches are either DOL (Direct Online) for slower winches or VFD (Variable Frequency Drives) for faster winches.

By utilising the VFD the winches can be inched or ran at full speed to achieve a faster pull in rate.

Typically the winches take between 500m to 1000m of Steel Wire Rope and range between 4.5 Tons to 10 Tons Capacities.

Specials can be manufactured to accommodate either more rope or higher capacities.

The rope is reeled through the conveyor system in place of the belt and then attached to the belt end and reeled in by operating the winch. Once in place the belt is spliced and the belt can be run.

This can be a fixed or a transferable solution for multiple belts.

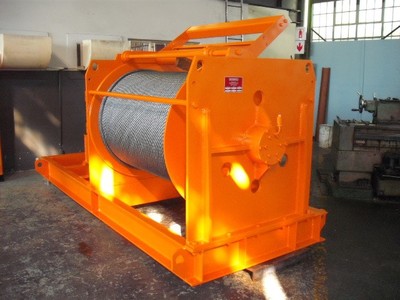

Please see below a Belt Pulling Winch – 10 Ton – 1000m:

Dymot is involved with the majority of Mining Projects and have products in more than 40 countries.

For Winch requirements contact Dymot Engineering Company on 011 970 1920 or visit our website at www.dymot.co.za .

Billie Christie – Engineering Manager – Dymot Engineering Company
