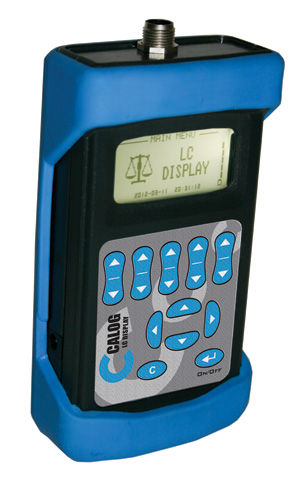

The Calog-LC Display is a portable, hand-held unit which is able to display a Loadcell value.  The Lithium Ion battery makes it possible to use the calibrator for a reasonable period of time as a portable loadcell indicator in industrial plants or emergency situations.



For longer applications, such as with a cattle scale, auxiliary power can be supplied via an external 12 volt battery, charger or car cigarette lighter socket. In order to display mass, force, strain or torque from loadcells the unit allows you to set sensitivity in mV/V, range, decimal points and units.



Zero trim can offset deadweight and span trim is available to increase the reading accuracy with the help of calibrated weights. Selections of software options such as tare, peak hold and auto zero maintenance are included.  The indicator can be used for one 350 Ohm or three 1000 Ohm loadcells with a fixed 5Vdc excitation.
