Tank contents gauges with mounting kit for plastic battery type tanks

Tank contents gauges with mounting kit for plastic battery type tanks

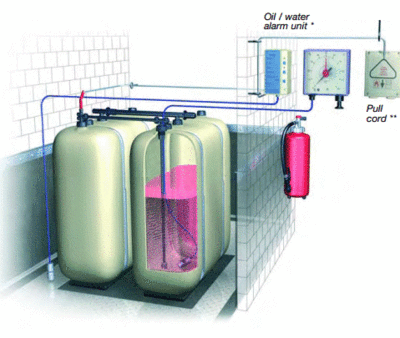

Many plastic fuel tanks become opaque over the years due to sediments, dirt and age. Often there is no spare connection available for a gauge. This special mounting kit makes it possible to connect a pneumatic remote reading contents gauge. There is no need to switch off the burner. Many withdrawal systems already have corresponding markings on the mounting flanges for the drilling of holes.

Unitel-Set
This universal, pneumatic tank contents gauge for remote indication up to 50 m comes with a mounting kit for installation on plastic battery tanks. Accuracy of measurement ±3 % FSD. The unit is fully adjustable for tank heights from 900 to 3,000 mm for fuel oil EL or diesel (density = 0.84 g/cm3 ). Reference pointer for easy consumption control. Indication in percentage of liquid level. The mounting kit consist of the capillary tube 2.10 m with balance chamber (Ø 9 mm), self-sealing tank adaptor for a  10 mm hole, 10 m capillary tube, hose clips, steel nails and a capillary extension piece.

Unitop-Set
This universal, pneumatic tank contents gauge for remote indication up to 50 m comes with a mounting kit for installation on plastic battery tanks. Accuracy of measurement ±2 % FSD. The unit is fully adjustable for tank heights from 900 to 3,000 mm for fuel oil EL or diesel (density = 0.84 g/cm3 ). Reference pointer and date indicator for easy consumption control. Indication in percentage of liquid level. Litre scales are available (a request card is included with the kit). The mounting kit is identical to the Unitel kit.

Click here for more Product Details from Afriso South Africa (Pty) Ltd...
