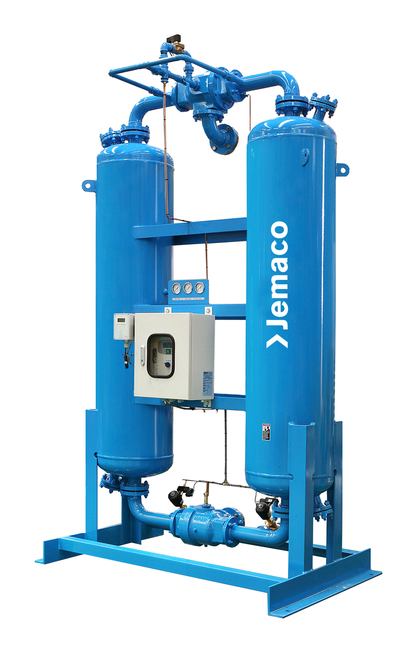

PSK Series Low Dew Point Desiccant Air Dryers

PSK Series Desiccant Air Dryers

The PSK series of heatless desiccant compressed air dryers is a proven workhorse for clients that demand low compressed air dew points with high reliability and minimal maintenance.  This design allows for minus 40°C performance with -70°C as an option

Manufactured by SPX Jemaco in Busan, South Korea to ASME codes that also comply with SANS 347 the units are the simplest adsorption dryer  design.

A portion of dried low dew point air from the online drying tower is reintroduced in a reverse direction   into the “wet” tower to desorb the drying media. This low pressure air flow carries the moisture in vapour form to atmosphere via high performance mufflers.

The PSK dryer is fitted with a versatile timer control box that allows for adjustment in drying time as well as repressurisation times. Purge air flow rates are field adjustable enabling users to optimise purge rates for different seasons.



Number of models within this range 18
Capacities 1.62 to 128 m3 / min
Max working pressure 12 bar
Dew point 40 °C standard, -70° optional



OPTIONS

  • Dew point monitoring
  • Dew point control
