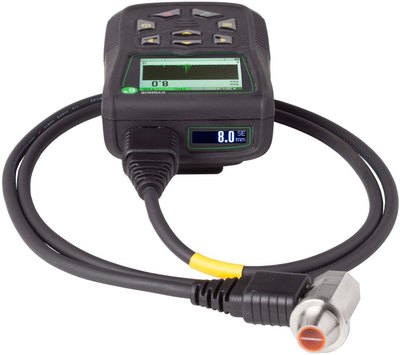

Cygnus 6+ PRO Multi-Mode NDT Ultrasonic Thickness Gauge
The Cygnus 6+ PRO NDT ultrasonic thickness gauge offers an array of features including: comprehensive data logging; A-scan and B-scan real time display; multiple-echo, single-echo and echo-echo measuring modes; Bluetooth connectivity; a unique duel display; plus much more.
Key features include:
- Multiple-Echo for reliable, accurate through coating measurements
- Single-Echo and Echo-Echo measuring modes with twin crystal probes for extreme corrosion and back wall pitting
- A-scan display
- Real time B-scan display
- Comprehensive data logging capabilities
- Bluetooth connectivity
- MSI™ (Measurement Stability Indicator) used in Single-Echo and Echo-Echo measurement modes
- Large bright colour LCD screen with back light
- Deep-coat mode, measure through coatings up to 20 mm thick
- Wrist mountable
- Minimum / maximum measurement limit functions with visual and vibrate alert
- Intuitive easy to use menu
- Extremely rugged enclosure – shock and impact to US MIL STD 810G
- Environmental sealing to IP67 – US MIL STD 810G
- Cygnus echo strength bars to assist quick measurements
- Buttons integral with the TPE moulding and designed for min 100,000 depressions.
Key data logging features include:
- 3 available formats: sequential, grid and template
- Add comment
- Add radial points
- Versatile data logging which allows measurements and A-scans to be saved
- 5,000 measurement points (including A-scan) per record
- Records are saved to a removable SD card
- Selectable Auto-Log feature
- Records easily transferred via gauge USB port to Cyglink software where they can be exported to a CSV file or a PDF report.
