High Performance Pleated Coalescers And Separators

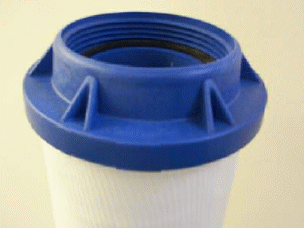

Hydrocarbon Coalescers

Liquid-liquid Coalescers for removing Water from Hydrocarbons

Chemflo's high peformance polyester media Hydrocarbon Coalescers are designed to remove water from hydrocarbons. Chemflo's proprietary polyester coalescing media is designed specifically for hydrocarbons and fuels.


  • Jet Fuel/Kerosene, Gasoline, Diesel, and other fuels
  • Wide variety of Hydrocarbons and Intermediates
  • Removal of Carried-Over Water
  • Final Products Polishing, Haze Removal
  • Protection of Catalysts, Exchangers and Equipment

Removal micron rating: down to 0.3µm water droplets
Water removal efficiency: 99% to 99.99%
100% removal of solids and liquids larger than 3µm
Removes water down to 10 ppm, depending on application

Specifications of Hydrocarbon Coalescers
Maximum Temperature: 200° F
Initial pressure drop: 2 psid or lower
Recommended change-out: 12-15 psid
Inlet water concentration: up to 3% water (30,000 ppm)
Length: "TB" Series: 40 and 56 inches. "LC" Series: 40 inches
Outside diamter: TB: 6 inches, LC: 3.75 inches
Core: Epoxy coated carbon steel of stainless steel
End caps: "TB" Series hydrocarbon coalescer: Nylon 66"threaded base" single open end configuration
"LC" Series hydrocarbon coalescer: Stainless steel single open end
Media: High performance pleated polyester media
