Simple Synchronization of Ultra High Speed Cameras to Transient Events

Simple Synchronization of Ultra High Speed Cameras to Transient Events

Product News Tuesday, August 12, 2014: EngNet - Engineering Network

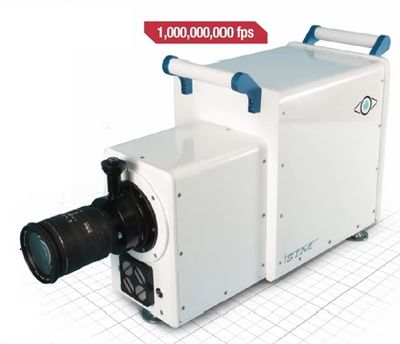

The SIMX Ultra High-Speed Framing Camera from Specialised Imaging offers the ultimate in ultra-high-speed imaging performance to scientists and engineers across all disciplines.

Often in ultra high-speed imaging, it is difficult to synchronize your camera to the event that you are trying to record and analyze. Using the very flexible multiple triggering capability of SIM cameras you can actually capture frames prior to the trigger. In this way SIM Ultra Fast Framing Cameras take the 'black magic' out of synchronizing camera and event allowing you to spend more time on capturing research data rather than setting up your experiment.

The proprietary optical design of the SIMX camera offers up to 16 images without compromising shading, or parallax. High resolution intensified CCD sensors controlled by state-of-the-art electronics provide almost infinite control over gain and exposure to allow researchers the flexibility to capture even the most difficult phenomena.

Full remote control using Ethernet is offered as standard, either the integral viewfinder or a laptop computer can be used for local focus. Comprehensive triggering facilities, highly accurate timing control, and a wide range of output signals, coupled with a custom software package that includes full measurement and image enhancement functions simplifies image capture.

SIMX cameras can be configured to give up to 16 different multi-spectral images with an R G and B filter on each channel. In this configuration it is possible to take 10 colour images and 2 monochrome.

Capable of capturing up to 16 images at 1 billion frames per second, the Specialised Imaging SIMX ultra high-speed framing camera is able to capture visual data from even the most fleeting of phenomena. Unique technology enables SIM ultra high-speed framing cameras to simultaneously capture images on different selected channels.

Widely used in applications including ballistics, biomedical research, combustion research, failure dynamics, impact studies, materials research, medical testing, nanotechnology and particle analysis the SIM family of Ultra Fast Framing Cameras from Specialised Imaging are proven to offer the ultimate in ultra-high-speed imaging performance.

Specialised Imaging (www.specialised-imaging.com) is a knowledgeable, dynamic company focused upon design, manufacture, service and supply of ultra high-speed imaging systems and components for industrial, defence and scientific applications.  The company's continuing policy is to invest in the development of innovative imaging solutions, incorporate the latest technological advances and use improved components wherever possible. A total commitment to quality and a thorough understanding of applications are held as the keys  to the future.

For further information please contact Specialised Imaging.
