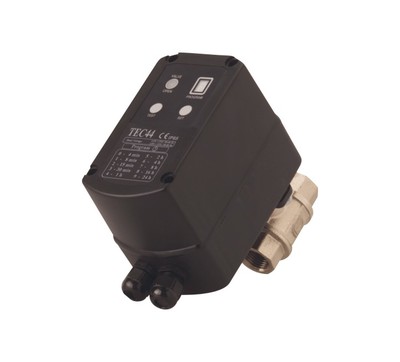

Artic 44 - Automatic Drain Valve

Artic 44 - Automatic Drain Valve

The Artic 44 timed automatic condensate drain is a proven solution to heavy condensate loads generated by large compressed air systems. It’s ideal for draining of large air distribution systems, air dryers, coolers and filters.

Almost every compressed air treatment process creates a water /oil condensate, this condensate must be removed from the air stream before the compressed air velocity carries it into your distribution system.  The heavy duty gear driven ball valve of the Artic 44 does not require the fitment of a pre strainer. It rotates a full 180° with each actuation, therefore debris is wiped away with every actuation of the valve.

Drain times are easily set from 4 secs to 24 hrs over ten pre-set time options with the drain interval being adjustable from 4 to 24 hrs.  A function test button, with an LED indicator light makes operator testing easy. This valve may also be computer controlled making it the most versatile drain valve in the industry.



Inlet port / outlet ½ BSP fem
Voltages available 110v or 220v
Protection rating IP65 when assembled
Max working pressure 45 bar
Drain body material Plated Brass



Applications

Large capacity filters & water separators

Air dryers ≥ 45 m3/min

Air receivers ≥ 500 litrs

Airline drain lines
