Artic Driers International

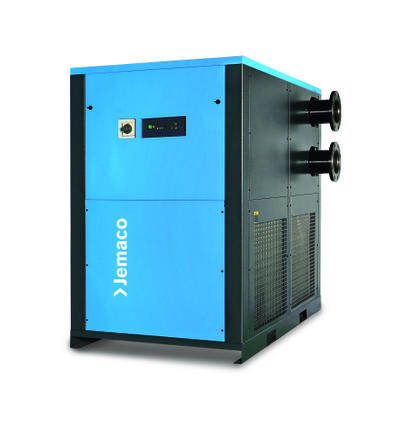

HX Series Air Dryers

Compressed Air Dryers, Air Dryers

The HX series of dryers utilizes an advanced stainless steel 3 in 1 brazed plate heat exchanger design with internal condensate separator and timed automatic drain. This air dryer has become an industry standard.

Its advanced Freon circuit design is simple & reliable providing air drying from 2 to 18 m³/min

The HX series are space efficient require some 40% less floor space with an ultra- low internal pressure drop.  The construction is rugged. The canopy is electro galvanised steel with two part epoxy coatings.

Environmentally friendly refrigerants are used, namely R 13A and R 407



Number of models within this range 9
Capacities 2.5 to 18 m3 / min
Max working pressure 12 bar
Dew point 3 °C





Click here for more Product Details from Artic Driers International...
