Mimic Components CC
Audible & Visual Warning Devices

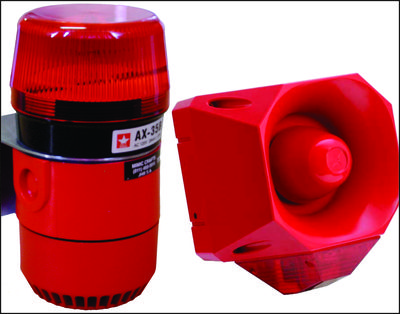

MIMIC COMPONENTS have introduced a convenient and compact audio-visual alarm that combines a super-bright 20mm LED and a penetrating sounder in a convenient wall mount box.
Units are available in surface mount box (as per diag.). Custom units can be made for special requirements with silk-screened or engraved text can be supplied.
The unit consists of:
• Enclosure: 130x69x44mm
• Sound output of 105dB at 30cm
• Frequency of 2.9KHZ
• Continuous or Intermittent
• 12V, 24V DC or 220V AC.
• Current consumption is 20mA at 24VDC
• Approximated LED life span of 15 years
• Super-Red 20mm dome led (Yellow or Green also available - The only approved LED for internal use by the Free State Province).
The standard unit has a steady on LED and continuous tone sounder, but on special order MIMIC COMPONENTS can supply variations to the standard, e.g. steady LED with intermittent sounder etc...
