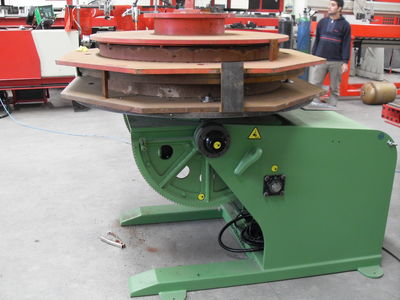

Britannia 1000kg Welding Positioner. For Sale or Hire/Rental
Product News Wednesday, December 1, 2010: Westermans International Limited
New Britannia 1000kg Welding Positioner. Made and Designed in Europe
This quality made welding positioner meets all the EU standards with full certification.
You can Buy or Hire this machine
Specification:
Power Tilt and variable speed Rotation with controller
Rated Load Capacity 1000 kgs
Rated Centre of Gravity (mm) 150
Rated Eccentricity (mm) 150
Rated Load Table Horizontal WI kgs 1500
Rated Tilt Torque (kg M) 324
Rated Rotation Torque (kg M) 150
Distance from Table to Pivot (mm) 174
Rotation Speed (Thyristor) (rpm) 0,02-1,1
Tilt Speed (seconds per 135o) 54 seconds
Table Diameter (mm) 1000 - Table Slots - Bolt Size 4M-18
Rotation Motor (kw) 0,75 - Tilt Motor (kw) 0,75
Earthing (Amperes) 500 - Supply Voltage 400 +/- 10%
Overall Length (Horizontal) (mm) 1610
Overall Width (mm) 1170
Overall Height Table Level (mm) 1055
Stock No: 12359
To see more photographs and a video click
welding positioner which will take you directly to the product on
www.westermans.com
Available from stock Leicester, UK
