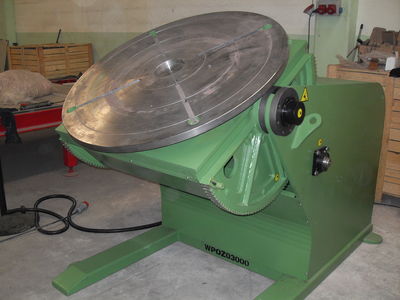

Britannia 3000kg Welding Positioner. For Sale or Hire/Rental
Product News Wednesday, December 1, 2010: Westermans International Limited
New Britannia 3000kg Welding Positioner. Made and Designed in Europe
This quality made welding positioner meets all the EU standards with full certification.
You can Buy or Hire this machine
Specification:
Power Tilt and Variable speed Rotation with controller
Rated Load Capacity 3000 kgs
Rated Centre of Gravity (mm) 150
Rated Eccentricity (mm) 150
Rated Load Table Horizontal WI kgs 4500
Rated Tilt Torque (kg M) 960
Rated Rotation Torque (kg M) 450
Distance from Table to Pivot (mm) 170
Rotation Speed (Thyristor) (rpm) 0,02-0,84
Tilt Speed (seconds per 135o) 71 seconds
Table Diameter (mm) 1100
Table Slots - Bolt Size 4M-18
Rotation Motor (kw) 1,5
Tilt Motor (kw) 1,1
Earthing (Amperes) 500
Overall Length (Horizontal) (mm) 1950
Overall Width (mm) 1260
Overall Height Table Level (mm) 1260
Supply Voltage 400 +/- 10%
Stock No: 12360
To see more photographs and a video click welding positioner which will take you directly to the product on www.westermans.com
Available from stock in Leicester, UK
