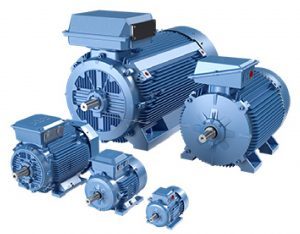

Industrial AC Motors
Super-E Motors are designed to conserve energy over extended time periods. These premium efficiency designs are available in both Totally Enclosed Fan Cooled and Open Drip Proof construction. All three phase motors are Inverter Ready per NEMA Standard MG1, Part 188.8.131.52. This means the motors in 230 and 460 volts meet NEMA's corona inception voltage requirements, under this Standard, and can withstand peak voltages of up to 1600 volts. Motors with premium efficiency are also available in single phase designs.
Automotive approved motors are available in both Standard High Efficiency, our Standard-E, Premium Efficiency and our Super-E designs. The Standard High Efficiency motors meet efficiency times power factor requirements of GM7EQ. The Premium Efficiency motors meet the efficiency times power factor of GM7EHQ. Available from stock in ratings from 1 HP to 100 HP. These cast iron motors meet automotive requirements for sound power levels.
BirCraft - Motors - Linear Actuators - Controls' line of brake motors are available in totally enclosed fan cooled, open drip proof, or explosion proof designs, in either single or three phase. Power ratings are available from 0.25 horsepower through 30 horsepower. These motors use a mechanical spring set brake with a manual release. Brake motors may be used on machine tools, conveyors, door operators, speed reducers, hoists, or any application requiring quick stops and positive holds.
BirCraft - Motors - Linear Actuators - Controls' new Definite Purpose Commercial Motor line offers many new ratings designed for applications with low to medium starting torque requirements. The Commercial Duty Motor line brings BirCraft's reputation for high quality designs to commercial applications with a cost-effective offering. This definite purpose product line is designed for certain applications requiring NEMA 48 and 56 motors rated between 1/4 and 1 HP, in both single and three phase ratings. Typical applications include: Jet Pump, Heating and Cooling, Ventilation, Air Conditioning, Blowers, Direct Drive Fans, Condenser Fans, and Pedestal Fans.
BirCraft - Motors - Linear Actuators - Controls' Explosion-proof motors are ideal for a wide variety of applications where hazardous fumes or dust may be present. The motors are available in three phase and single phase with ratings from 1/4 HP through 300 HP. Designs available include standard foot mounted, C face with base and C face without base, 60 Hz and 50 Hz, Jet Pump motors, and Inverter Drive motors.
Motors built for applications requiring F-2 mounting are available from stock in 1/2 HP through 60 HP. These motors are manufactured in both TEFC and Open Drip Proof construction in NEMA frames from 56 to and including 364T. Many of the ratings are Class "F" insulated with 1.15 Service Factor that operate within Class "B" temperature limits. The motors are stocked in both Standard High Efficiency and Premium Efficiency designs.
These motors are designed for many of the varied applications found on the farm. Designs include motors suitable for aeration fans, auger drives, grain stirring, metering pumps, instant reversing, irrigation tower drives, and crop driers. General purpose motors are also available in single and three phase, TEFC and ODP construction. For those loads that are hard to start and require extra torque, Baldor is the only motor manufacturer that stocks Repulsion-Start Induction Run motors, in sizes from 2 HP to 10 HP.
BirCraft's extensive line of General Purpose motors are available in Open Drip-proof and TEFC construction in both single and three phase. Horsepower sizes range from 1/12 HP through 1500 HP. Designed for "general purpose" use means that these motors can be used in applications which include compressors, pumps, fans, conveyors, material handling, machine tools and many others. Also available are stock motors that are direct replacements for the motors built in Pre-1952 NEMA frames.
Severe Duty motors are available from 1 HP to 500 HP. These products are especially designed for those applications requiring protection of the motors from severe environmental operating conditions. A few typical applications which might require these types of motors include petro-chemical plants, mines, foundries, pulp and paper plants, waste management facilities, rock crushers, and chemical plants.
BirCraft - Motors - Linear Actuators - Controls' line of Heating, Ventilation, and Air Conditioning Motors are designed with dynamically balanced rotors for reduced vibration and quiet operation. The motors range in size from 1/4 HP to 75 HP and include heavy duty industrial designs as well as designs for commercial applications. These applications include ventilators, direct drive and belted fans, exhaust fans, unit heaters, air conditioning units, and commercial refrigeration condensers. Also included are motors designed especially for use with variable torque electronic controls that are used to conserve electricity.
Inverter Drive Motors are wound with 200 degree C. moisture resistant ISR (Inverter Spike Resistant) magnet wire which dramatically extends the life of the motors compared to motors wound with non-ISR wire. The motors range in size from 1/3 HP to 500 HP. These motors are designed for applications where up to a 1000:1 constant torque speed range is required. Applications include conveyors, pumps, fans, metal processing, compressors, test stands, and material handling equipment.
BirCraft - Motors - Linear Actuators - Controls' line of Metric Dimension Motors are designed in IEC Frames from D63 through D200L. The motors are available from stock in 50 Hz or 60 Hz. This means that replacement 60 Hz motors are readily available from Baldor to replace metric motors that have failed on imported machinery. Motor construction meets IP54 and includes motors with B3 base mounting, B5 Flange mounting or B14 Face mounting. Motors range in size from 0.09kW to 30 kW. Typical applications for this product include pumps, fans, conveyors, machine tools, gear reducers and any other jobs that require IEC Frames.
These single phase motors are available in both totally enclosed fan cooled and open drip proof construction. Industrial quality with 200 degree C., moisture resistant wire, the motors have UL and CSA recognized component approvals. Nema frame sizes include 56 through 184 in rigid base only or NEMA C face with base.
Our pump line of motors includes single or three phase jet pump motors, square flange motors, close-coupled pump motors, and P-Base vertical solid shaft pump motors. The motors are totally enclosed fan cooled, open drip proof, and many explosion proof ratings. Applications for these run the gamut from swimming pool pumps to medium and high thrust in-line pumps used in water treatment plants. Horse powers range in size from 1/3 through 75 HP.
BirCraft - Motors - Linear Actuators - Controls' servo line includes both brushless and brush type motors. Designs are available having either ferrite or rare earth magnets. Numerous ratings are available with controls for Matched Performance. These motors are ideal for industrial applications where high torque to inertia ratio and repeatability are needed. These applications include material handling, X-Y positioning, machine tools, factory automation, and packaging equipment.
Two Speed Motors are available in both totally enclosed fan cooled and open drip proof designs. Constant torque or variable torque motors having one winding or two windings are in NEMA frames 56 through 284T. Applications for these motors include fans, blowers, pumps, machine tools, hoists and conveyors.
Vector Drive Motors are either totally enclosed blower cooled with an attached constant velocity fan or totally enclosed non-ventilated construction. All motors are supplied with a 1024 line count encoder. Horse powers are available from 1 through 500 HP in NEMA frame sizes from 56C through 5009L. The motors are ideal in industrial applications where full torque is needed from base speed down to zero speed. Applications include test stands, materials handling, packaging equipment, printing presses, and others requiring exact speeds and positioning.
BirCraft - Motors - Linear Actuators - Controls' Washdown Duty Motors are available from stock in single and three phase AC and in DC designs. Horsepowers range from 1/2 to 20 HP. Designs include motors having an electro statically applied epoxy finish, paint free with major components in 300 series stainless steel, and all stainless steel. Applications include food processing, packaging, pharmaceuticals, or applications where motors are regularly exposed to high pressure wash down.
